Features Overview

LDAP Manager provides a modern, intuitive interface for managing OpenLDAP servers with powerful features for directory management, monitoring, and administration.

Dashboard & Multi-Cluster Management

Manage multiple LDAP servers from a single interface. The dashboard shows all configured clusters with health status indicators.

Key Features:

• Multi-Cluster Support - Connect to multiple LDAP servers
• Health Status - Real-time connection status for each cluster
• Quick Access - Click any cluster to view its directory
• Cluster Information - View host, port, and description

Connecting to LDAP

When you first connect to a cluster, you'll be prompted to enter the admin password. This password is securely encrypted and cached using Fernet symmetric encryption with automatic TTL expiration.

How It Works:

1. Click on a cluster name
2. Enter the bind DN password when prompted
3. Password is cached for future use
4. All users can access the cluster without re-entering password

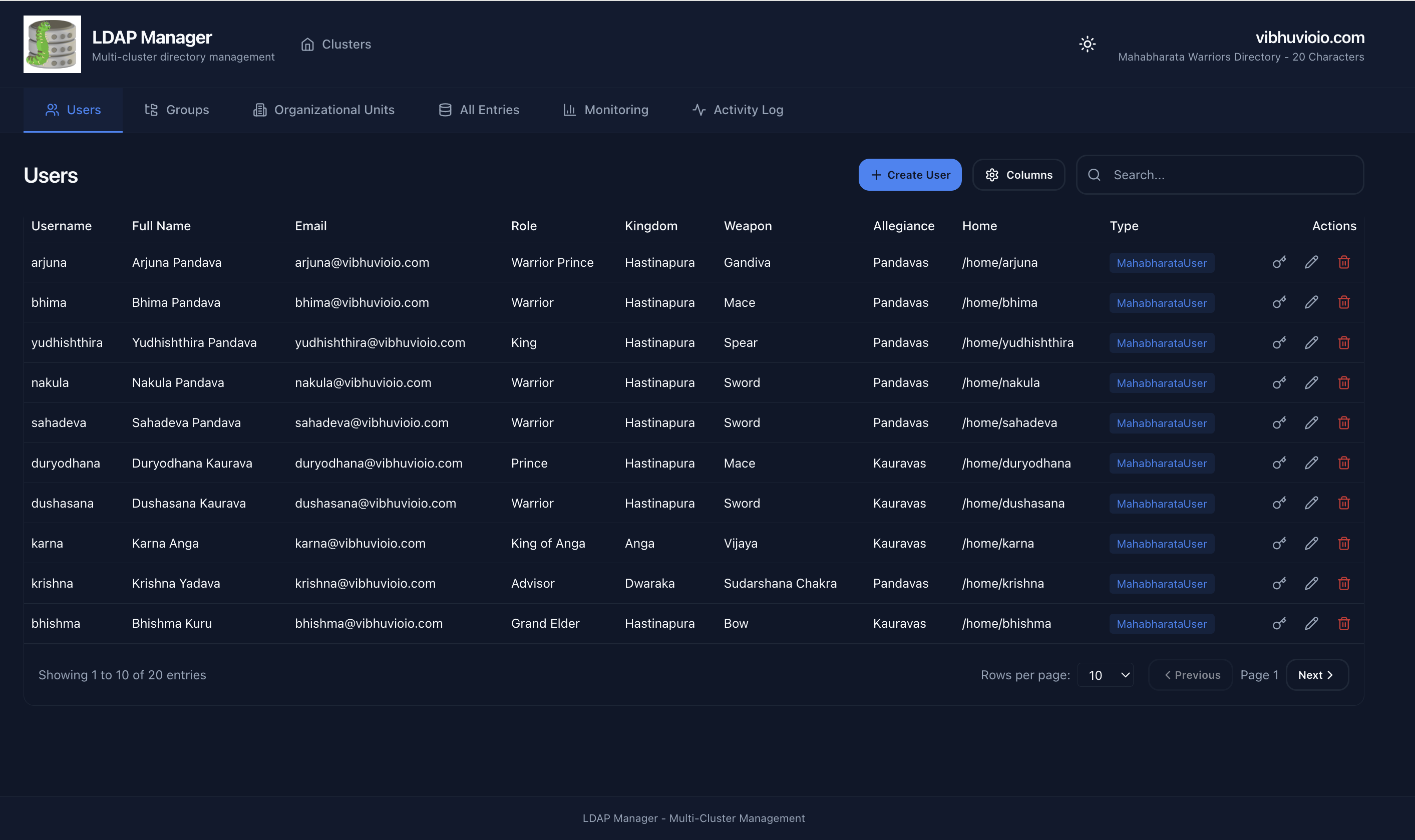

Users Management

Browse, search, create, edit, and manage LDAP user entries with an intuitive table interface.

Features:

• Server-Side Search - Fast LDAP filter-based search across uid, cn, mail, sn
• Server-Side Pagination - Efficient handling of large directories (RFC 2696)
• Create User - Custom form with auto-fill fields
• Edit User - Modify user attributes (except uid/uidNumber)
• Change Password - Update user passwords with policy validation
• Delete User - Remove user entries
• Column Customization - Show/hide columns via Settings button
• Custom Schema Support - Automatically detects custom objectClasses

User Actions:

Each user row has an Actions menu with:

• 🔑 Change Password
• ✏️ Edit User
• 🗑️ Delete User

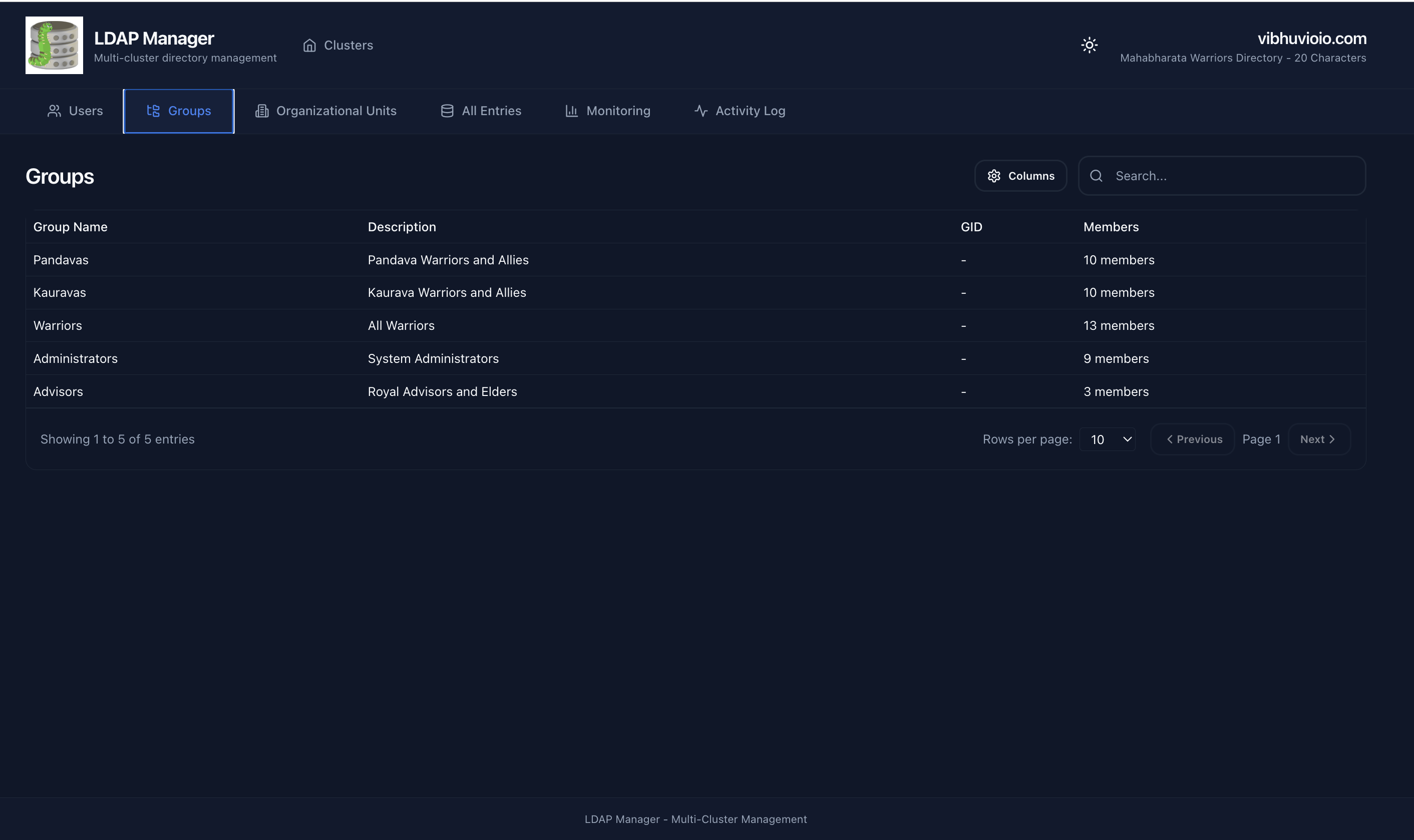

Groups Management

View and manage LDAP groups including groupOfNames, groupOfUniqueNames, and posixGroup.

Features:

• Group Types - Supports all standard LDAP group types
• Member Display - View group members
• Group Details - See description and DN
• Search Groups - Filter groups by name

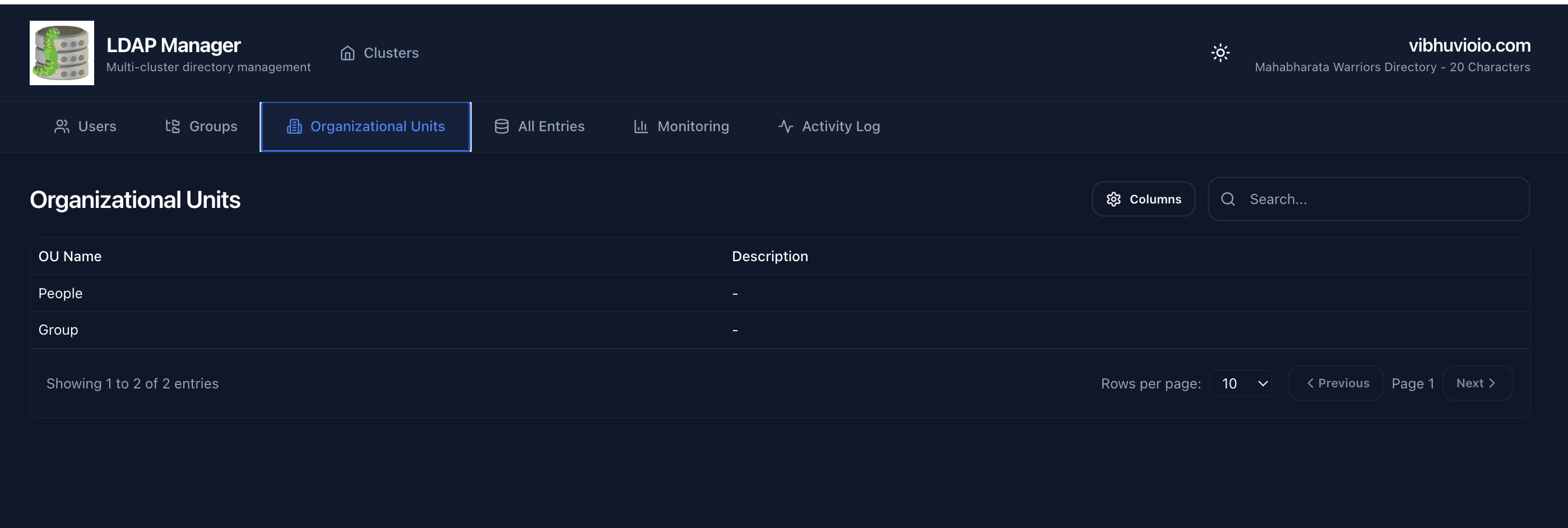

Organizational Units (OUs)

Navigate and manage the organizational unit hierarchy in your LDAP directory.

Features:

• OU Hierarchy - View organizational structure
• OU Details - Name, description, and DN
• Navigate Structure - Browse through OU tree

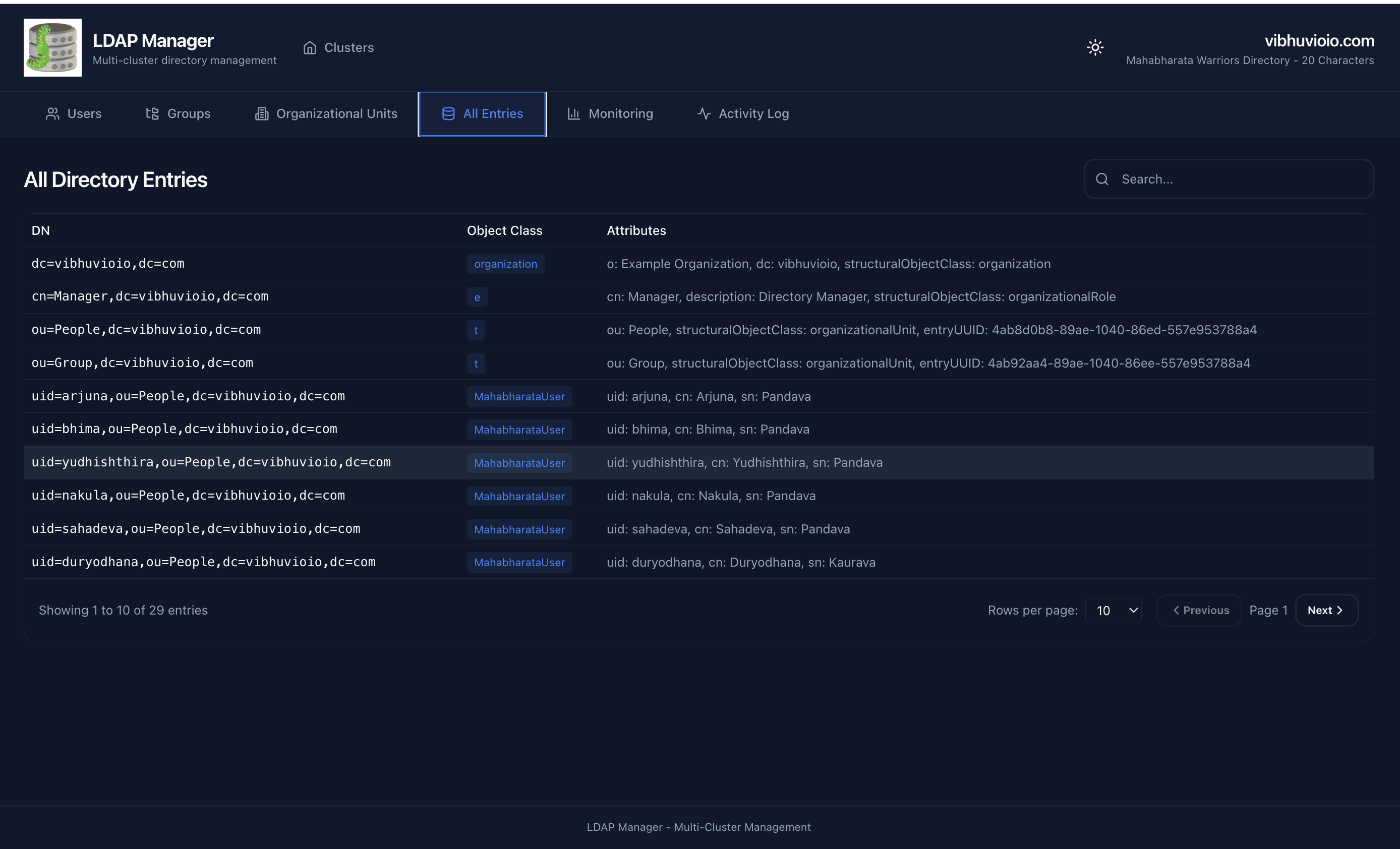

All Directory Entries

View all LDAP entries regardless of type - users, groups, OUs, and custom objects.

Features:

• Complete View - All object types in one table
• Object Class Display - See entry types
• Universal Search - Search across all entries

Monitoring & Health Status

Real-time monitoring of LDAP cluster health, connection metrics, and replication status.

Single Node Monitoring

Monitor individual LDAP server health and statistics.

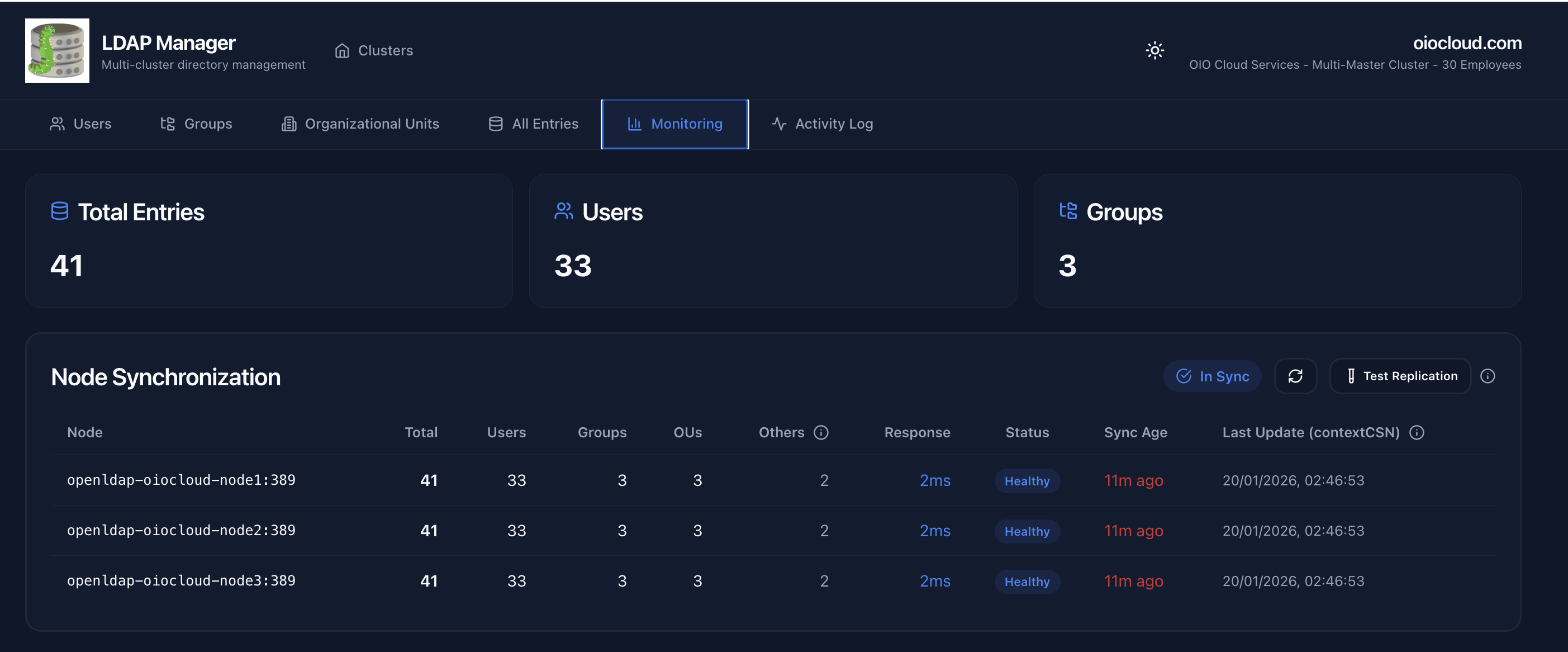

Multi-Node Cluster Monitoring

View health status across all nodes in a multi-master cluster.

Monitoring Features:

• Health Status - Connection state for each node
• Directory Statistics - User, group, and OU counts
• Connection Metrics - Response times and availability
• Cluster Overview - All nodes at a glance

Replication Topology

Visualize multi-master replication topology and sync status between nodes.

Features:

• Visual Topology - See replication connections
• Sync Status - Monitor replication health
• Node Status - Individual node health indicators
• Multi-Master Support - Full N-way replication visualization

Activity Logs

View LDAP operation history and search examples.

Features:

• Operation History - See recent LDAP operations
• Search Examples - Learn LDAP filter syntax
• Audit Trail - Track directory changes

Production-Grade Features

LDAP Manager includes enterprise-grade features for security, high availability, and monitoring.

Load Balancing & Failover

For multi-master LDAP clusters, LDAP Manager intelligently distributes load and provides automatic failover:

• Read Distribution - Searches use last→second→first node order to minimize load on primary
• Write Consistency - Writes always go to first node (primary master)
• Automatic Failover - 2-second connectivity checks with fallback chain
• Connection Pooling - 5-minute TTL reduces connection overhead by 50x

Security Features

• Encrypted Passwords - Fernet symmetric encryption with automatic TTL expiration
• LDAP Injection Protection - All user input sanitized and escaped
• CORS Security - Environment-based origin whitelist
• Audit Logging - All CREATE/UPDATE/DELETE operations logged with context
• Non-Root Container - Runs as ldapmanager:1000 user

See Security Guide for detailed information.

Quality Assurance

• 104 Backend Tests - Comprehensive test coverage with 97% pass rate
• Security Testing - Encryption, injection protection, authentication tests
• Configuration Validation - Pydantic schema validation at startup

Observability

• Structured JSON Logging - Timestamp, level, module, function, line context
• Health Check Endpoint - /health validates config, pool, LDAP connectivity
• Request Metrics - Duration, status code, path tracking

See Production Deployment Guide for setup instructions.

Custom Schema Support

LDAP Manager automatically detects and displays custom objectClasses and attributes.

How It Works:

• Filters out standard classes (top, person, inetOrgPerson, etc.)
• Displays custom schema name in "Object Class" column
• Shows custom attributes in "Details" column
• Supports any custom LDAP schema

Example Custom Schemas:

• oioCloudEmployee - Custom employee schema
• MahabharataUser - Custom user schema
• Any custom objectClass you define

Column Customization

Users can customize which columns are visible in tables.

Features:

• Settings Button - Click ⚙️ icon to open column settings
• Show/Hide Columns - Toggle visibility for any attribute
• Persistent Preferences - Settings saved in browser localStorage
• Default Visibility - Admins can set defaults in config.yml

Server-Side Features

Server-Side Pagination (RFC 2696)

Efficiently handle large LDAP directories without loading all entries at once.

• Default: 10 entries per page
• Navigate with Previous/Next buttons
• Reduces LDAP server load
• Faster response times

Server-Side Search

Fast LDAP filter-based search performed on the server.

• Search across: uid, cn, mail, sn
• Real-time results
• LDAP filter syntax
• No client-side filtering

Auto-Discovery

Automatic base DN detection from LDAP rootDSE.

• No need to specify base_dn in config
• Queries LDAP server for namingContexts
• Automatically selects appropriate base DN
• Works with any LDAP server

Technology Stack

Frontend

• React 18 - Modern UI framework
• TypeScript - Type-safe development
• Vite - Fast build tool
• shadcn/ui - Beautiful UI components (Radix UI + Tailwind CSS)
• Axios - HTTP client
• React Router - Navigation

Backend

• FastAPI - Modern Python web framework
• python-ldap - LDAP client library
• PyYAML - Configuration parsing
• Uvicorn - ASGI server

Compatible LDAP Servers

• ✅ OpenLDAP 2.4+
• ✅ OpenLDAP 2.6+
• ✅ 389 Directory Server
• ✅ ApacheDS
• ✅ Any RFC 4511 compliant LDAP server

Next Steps

• Learn how to configure clusters
• Explore API endpoints
• Review security best practices
